Sunday, July 28, 2013

My first 3D printing experience

The Milwaukee Makerspace has several 3D printers.  One of them is a Makerbot Replicator.  I was able to use the printer tonight to start a project that I saw on Thingiverse.

I am going to make a Tardis from Dr. Who for my son Dmitry's birthday (shhh. Don't tell him).  Here is a link to the project on Thingiverse.  The extruder material we have at the 'space is white so I will need to paint it blue.  I also might install the lights if I am ambitious.

The process was very easy.

First, I had to download the Makerware software from the Makerbot website.  I have a portable running Ubuntu so I had to download the version for Ubuntu 12.0.4 LTS.  By the way, to figure out what version of Ubuntu you have, type "lsb_release -a" at the command prompt.  the Makerbot website has excellent step-by-step instructions and the install process was very easy.

Next, I downloaded the 3D printable images from Thingiverse.  The files came down as a zip file.  I unzipped it to the folder.  Again, very easy.

The next step was to open one of the stl files in Makerware.  I tweaked a few of the settings for the Replicator and based on recommendations from the Thingi author.  Makerware saved the "g-code" files to an SD card.

The SD card was inserted in the Makerbot's SD card slot.  I kicked off the print and sat back to wait.

The first piece I printed was one of the side panels.  It took almost an hour to print.  It looks like it stopped early.  Not sure what happened.  Maybe the extruder jammed.  (Update.  The side panel did not printer correctly.  The picture shows the back of the door.  The front did not finish printing.)

I also printed two other pieces.  They appeared to print correctly.

That was enough for one night.  I will do some more printing another day.

Another great time at the Makerspace.  Thanks to Joe B. for his help.

My first Instructable

A week or so ago, the Makerspace got some free samples of a playdoh like substance called Sugru.  In exchange for the free stuff, we were asked to make some cool things and post them on Instructables.

I used a small amount to fill a hole that was drilled too large in my rocket launcher.  Tonight, I created the instructable for using the Sugru.  I suppose filling a hole is not very exciting but since is this is my first instructable, I figured I would blog about it.

Here is the link to the instructable: http://www.instructables.com/id/Fix-a-hole-that-is-too-big-with-Sugru/.  You can see a picture of the plugged hole if you follow the link.

Saturday, July 27, 2013

Soldering lessons

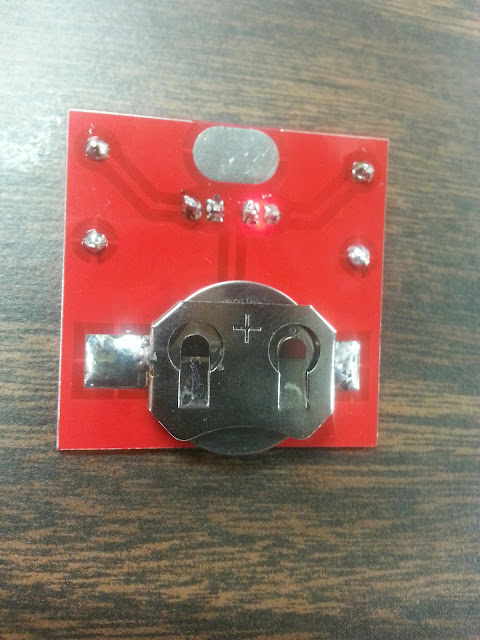

This afternoon I did a quick soldering lesson with Katie and Jacob at the Makerspace. The 'space has a learn to solder kit. Both Katie and Jacob tried their hand at the soldering iron. The end result is the Makerspace logo guy with blinking eyes. Nice work guys.

Tuesday, July 16, 2013

Welding and sugru

Here are pictures of what I did tonight at the Milwaukee Makerspace. First, Matt W. and Dan helped me weld a jack onto my trailer hitch. It is a super strong weld that should outlast the rest of the trailer. They did most of the work but I did get to do some welding. I am looking forward to doing more.

They also had a sugru build night at the space. I tried fixing Tim's broken headphones. I did not hold the pieces together long enough for the sugru to harden so it did not stay. I need to figure out a way to hold it together while the sugru hardens.

I did use the sugru to fill the hole in my rocket launcher where the LED goes. Once that hardens it should be good.

It was another good night at the Makerspace.

Friday, July 12, 2013

First beta test of HESA

I performed the first beta test of the Home Environmental Sensor Array at the Milwaukee Makerspace last night.  Unfortunately, the test was not a success.

Setup Headaches
First of all, it took about 30 minutes for me to get completely setup.  I spent most of the time hunting for a monitor with the right kind of HDMI plug.  After giving up on that, I borrowed someones HDMI cable that would connect my PI to a monitor.  I need to get a mini-HDMI to HDMI cable.

Pump Leaks
The next issue I had is that one of my pumps had an output with two openings.  When I turned on the pump, it started spraying water into the air.  I tried fixing that by stuffing the hole with some clear epoxy.  The container says it is water proof not just water resistant so I hope it works and can resist the pressure.

Email Module Issues
After getting everything setup, I fired off the program.  It kicked out with an error related to loading the email module (at least I think that is where the error came from).  My theory is that it was not able to load the module because I was not connected to the internet and an SMTP server.  However, now that I think about it, it was probably trying to SEND an email and could not find an SMTP server.  In any event, I commented the email stuff out and moved on.

GPIO Input Problem
I fired up the program without the email features and it did not raise an error but it immediately exited.  All the wiring looked correct.  I tried turning on debug mode and the program then turned on the PowerSwitch Tail but exited after five seconds.  Hmmm....  Five seconds is the wait time I built-in at the start of the program if it is run in debug mode.  So, the program would turn on the powerswitch tail, pause five seconds then immediately exit.  Why?

Long-story-short, the problem is with the circuit design for detecting power on the input pin.  Tom G. from the Makerspace looked over what I was doing and explained that I can't just connect a lead into the digital GPIO input pin on the Raspberry PI and expect it to work correctly.  Apparently, connecting a wire to an input pin where the wire is open to the air causes unexpected problems.  Tom had two suggestions.

First, he suggested that I abandon the wire as a way to detect water and instead put a float in my crock that will activate a switch that is connected to the circuit on the PI.  When the water rises to the right level, the switch will close and the PI will receive a signal.  A float / switch solution is more reliable than bare wires, it is not dependent on the content of the water (meaning that the resistance of the water is not a factor), nor will it corrode over time.

The other suggestion Tom had was to add a small resistor to the input part of the circuit and connect it to ground.  That would draw off any phantom electrical signals but not stop the real signal from reaching the PI if the circuit got closed.  Adding a resistor would be a simpler solution but still has the disadvantages noted above.

Follow-Ups and Next Steps
I don't really understand why a bare wire plugged in to the GPIO port will generate phantom input signals.  I suspect it is because there is EM radiation in the air at the Makerspace that the lead was picking up.  I will need to do some research into this.

Also, Tom mentioned that the larger the resistor, the more current it will let through.  He suggested that I use a 10k, or better yet, 1k resistor and not a 1M resistor.  The larger resistor will not stop small signals from getting through.  That sounds backwards to me but as I know nothing about electricity, I need to research it.

Maybe I will add a small resistor to the circuit just to make sure it works.  Then, I might build a float switch to make the design more robust.  I should build two float switches--one to send a signal to the HESA, and one to turn on the pump that simulates a sump pump in my test system.

Wednesday, July 10, 2013

Roof on rabbit house

Yesterday, I cut the top of the rabbit's house to fit the cage and added hinges on the back. Now, it fits exactly, is attached to the frame and can be opened to clean out the house or pick up the rabbit. Here are some pictures.


Friday, July 5, 2013

Wood splitting day

Here is what we did today. I can only do this for so long but we cut about 1/3 more of the pile. Not sure if we can get the rest done this weekend or not.
